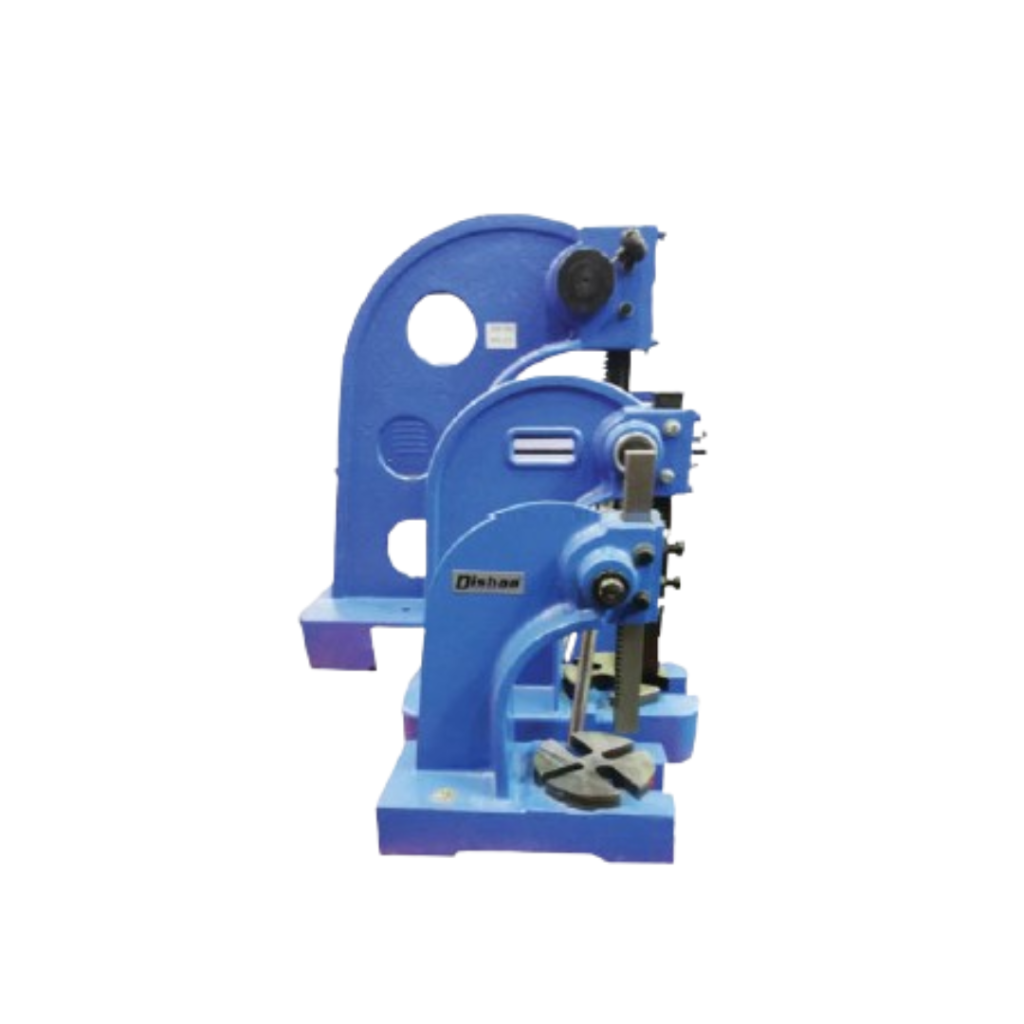

ARBOR PRESS
Introduction:
An Arbor Press is a small yet powerful manual press machine used for precision work such as staking, riveting, installing, configuring, and removing bearings and other press-fit work. It operates using a hand-operated lever or wheel, applying mechanical force through a gear-driven ram or plunger. Arbor presses are widely used in various industries where compact size, control, and accuracy are required.
Dishaa Machinery & Tools supplies high-quality arbor presses to support industries like automotive, aerospace, fabrication, electronics, and metalworking. Our industrial-grade arbor presses are engineered for durability, smooth operation, and precise control over pressing operations. These machines play a crucial role in the assembly line by allowing workers to exert the necessary force without using hydraulic or pneumatic systems. The Arbor Press pairs well with Punching Machines for high-accuracy jobs.
Arbor presses come in various tonnage capacities (typically 1 to 5 tons) and are built from heavy-duty cast iron or steel to withstand daily industrial use. Their simple yet effective mechanism makes them ideal for manual press applications and prototyping environments. Whether used for broaching, pressing bearings, or metal marking, arbor presses deliver consistent results with minimum maintenance. Their cost-efficiency and easy-to-operate mechanism make them a preferred choice in workshops and factories.
An arbor press is a small yet powerful manual press used for precise pressing operations in industrial workshops. Commonly made from durable cast iron, it’s designed for applying controlled force in tasks like staking, riveting, broaching, and light assembly work. Arbor presses are especially popular in tool rooms, metalworking shops, and manufacturing units where compact, accurate pressing is required.
Features:
1. Heavy-Duty Construction
– Made of high-grade cast iron or steel
– Designed to withstand repeated manual operations without fatigue
– Vibration-free base enhances stability
2. Manual Operation
– No need for power supply
– Simple lever or hand-wheel control
– Great for areas without electricity or compact workstations
3. Rack and Pinion Mechanism
– Offers smooth and controlled pressing action
– Mechanical advantage through gear setup
– Ensures uniform force application
4. Adjustable Ram
– Enables precision in stroke depth and alignment
– Ideal for applications requiring repetitive pressing of parts
5. Compact Design
– Takes up less space in the workshop
– Easy to relocate or mount on workbenches
6. Cost-Effective
– Affordable compared to hydraulic or pneumatic systems
– Low maintenance and long service life
7. Tonnage Capacity
– Available from 1-ton to 5-ton capacities
– Can handle both small precision tasks and larger press-fit jobs
8. Safety and Ergonomics
– Ergonomic handles reduce strain on the operator
– Manual control offers more precision and safety in delicate jobs
9. Versatile Mounting Options
– Can be bench-mounted or floor-mounted
– Customizable to suit workspace needs
Â
Characteristics:
1. Manual Operation:
Operated by hand lever or wheel, offering precise control without electricity or hydraulics.
2. Compact & Space-Saving:
Small footprint, ideal for workbenches or tight workshop spaces.
3. Strong Cast Iron Body:
Durable, heavy-duty frame ensures stability and long service life.
4. Rack & Pinion Mechanism:
Ensures smooth vertical motion and controlled pressure application.
5. Adjustable Ram Travel:
Customizable stroke depth for different workpiece heights and applications.
6. Rotating Anvil Table:
Multi-position base supports varied work types and dies.
7. Versatile Tonnage Options:
Available in multiple capacities (typically from 1 to 5 tons).
8. Minimal Maintenance:
Simple construction requires low upkeep, reducing downtime.
9. Precision Alignment:
Suitable for delicate and accurate pressing operations.
10. Multipurpose Use:
Ideal for pressing, punching, staking, broaching, and assembling tasks.
Applications:
1. Bearing Installation and Removal
– Press bearings into housings without damaging them
– Remove bearings safely from shafts
– Used in automotive, electrical motor repair, and pump assembly
2. Metal Stamping and Embossing
– Stamp serial numbers, part numbers, or logos onto metal surfaces
3. Riveting and Punching
– Assemble sheet metal parts with rivets
– Punch holes in light to medium gauge materials
– Effective for aerospace and electronics industries
4. Broaching
– Push keyway broaches through metal for creating internal slots
– Common in gear-making and transmission components
– Arbor press ensures straight, accurate broaching action
5. Light Press Fit Assemblies
– Assemble parts with interference fits
– Common in mechanical and tooling industries
– Excellent for hobbyists and prototyping environments
6. Jewelry Making and Crafting
– Apply precise pressure to materials without distortion
– Used for custom engraving, forming soft metals
– Preferred by artisans for its tactile control
7. Watch and Clock Repair
– Press small gears and hands with precision
– Used by horologists for repair and assembly
– Compact size suits delicate operations
8. Circuit Board Assembly
– Press fit components onto PCBs
– Used in manual electronics assembly lines
– Ensures components are seated properly
9. Bushings and Shaft Assembly
– Align and press bushings, pins, and shafts in assemblies
10. Academic and R&D Use
– Used in educational institutions for training
– Labs use arbor presses for testing materials
– Helps in prototype development and mechanical trials
Â
Technical Parameters:
| Specification | Units | ½ TON | 1 TON | 2 TON | 3 TON | 5 TON |
|---|---|---|---|---|---|---|
| Capacity | Ton | 0.5 | 1 | 2 | 3 | 5 |
| Max height & dia | MPA | 90x80 | 110x100 | 180x123 | 285x163 | 400x226 |
| Largest Arbor | mm | 26 | 29 | 40 | 44 | 70 |
| Ram square | mm | 19x19 | 25x25 | 32x32 | 38x38 | 50x50 |
| Base size | mm | 240x170 | 268x190 | 432x260 | 455x300 | 645x176 |
| Press Ht | mm | 280 | 355 | 445 | 615 | 815 |
| Dimension | cm | 26x12x29 | 29x14x35 | 46x20x45 | 46x24x64 | 76x37x95 |
| N.W/G.W | Kg | 11/12 | 15/16 | 36/38 | 63/65 | 155/166 |
