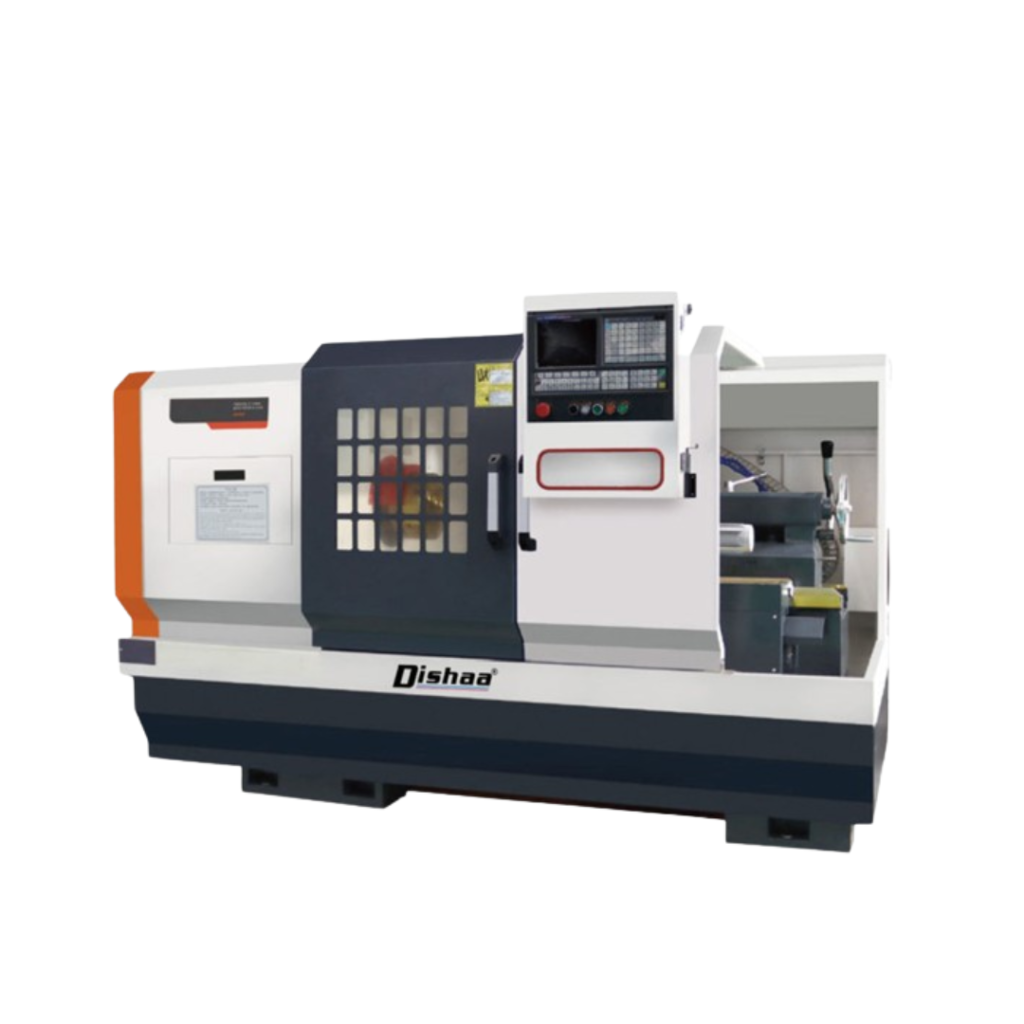

CNC Lathe Machine
DCK6152E / DCK6165E / DCK6185E
| Specifications | Unit | DCK6152E | DCK6165E | DCK6185E |
| Max. swing dia. over bed | mm | 530 | 650 | 850 |
| Max. swing dia. over slide | mm | 280 | 375 | 500 |
| Maximum turning diameter (disc) | mm | 520 | 650 | 850 |
| Max.work piece lenth | mm | 1000/1500/2000/3000 | 1000/1500/2000/3000 | 1000/1500/2000/3000/4000 |
| Maximum turning length | mm | 825/1325/1825/2825 | 900/1400/1900/2900 | 900/1400/1900/2900/3900 |
| Spindle nose | A2-8 | C11 | C11 | |
| spindle bore | φ/mm | 90 | 105 | 105 |
| Spindle taper | φ/mm | 100/1 20 | 120/1 20 | 120/1 20 |
| Spindle speed | r/min | 30-150,90-450,315-1600 | 10-85,40-350,100-850 | 10-85,40-350,100-850 |
| Spindle shift mode | Three speed mechanical transmission, stepless speed regulation within the gear | |||
| Spindle motor power | KW | 7.5 | 11 | 11 |
| Chuck type | Manual Chuck | Manual Chuck | Manual Chuck | |
| Chuck size | mm | 250 | 320 | 400 |
| X axis rapid traverse | m/min | 6 | 4 | 4 |
| Z axis rapid traverse | m/min | 8 | 5 | 5 |
| X axis servo motor torque | N.m | 7.5 | 10 | 10 |
| Z axis servo motor torque | N.m | 10/15/22 | 15/22/30 | 15/22/30 |
| X axis travel | mm | 300 | 400 | 450 |
| Z axis travel | mm | 1000/1500/2000/3000 | 1100/1600/2100/3100 | 1100/1600/2100/3100/4100 |
| Guide way type | Hard rail | Hard rail | Hard rail | |
| Capacity of tool post | 4 | 4 | 4 | |
| Tool shank size | mmxmm | 25X25 | 32×32 | 32 X 32 |
| Tail stock quil dia. | φ/mm | 75 | 100 | 100 |
| Tail stock quil travel | mm | 150 | 250 | 250 |
| Tail stock quill taper | MT5# | MT6# | MT6# | |
| Total rated power | KW | 12/12/13 | 16/18/20 | 16/18/20 |
| Total rated current | A | 26/26/28 | 36/40/42 | 36/38/42 |
| Net weight | kg | 2900/3150/3500/4300 | 4000/4400/5000/5800 | 4200/4600/5200/6000/6700 |
| Machine dimension (LxWxH) | LxWxH(mm) | 2600/3100/3600/4800X1600X1670 | 3300/3800/4300/5300X1900X1900 | 3300/3800/4300/4800/5800X2000X2000 |
DCK6140 / DCK6150 / DCK6160
| Specifications | Unit | DCK6140 | DCK6150 | DCK6160 |
| Max. swing dia. over bed | mm | 400 | 500 | 600 |
| Max. swing dia. over slide | mm | 240 | 250 | 395 |
| Maximum turning diameter (disc) | mm | 400 | 500 | 600 |
| Max. work piece length | mm | 550/750 | 1000/1500/2000 | 1000/1500/2000 |
| Maximum turning length | mm | 420/620 | 850/1350/1850 | 850/1350/1850 |
| Spindle nose | A2-6/A2-8 | A2-8/A2-11 | A2-8/A2-11 | |
| spindle bore | φ/mm | 48/82 | 82/130 | 82/130 |
| Spindle taper | φ/mm | Chuck / 90 | 90/140 | 90/140 |
| Spindle speed | r/min | 150-2500/150-1800 | 150-1800/150-800 | 150-1800/150-800 |
| Spindle type | Stepless speed regulation | |||
| Spindle motor power | KW | 5.5/7.5 | 7.5/11 | 7.5/11 |
| Chuck type | Manual Chuck | Manual Chuck | Manual Chuck | |
| Chuck size | mm | 200/250 | 250/320/380 | 250/320/380 |
| X axis rapid traverse | m/min | 6 | 6 | 6 |
| Z axis rapid traverse | m/min | 8 | 8 | 8 |
| X axis servo motor torque | N.m | 4 | 5/7.5 | 5/7.5 |
| Z axis servo motor torque | N.m | 6 | 7.5/10/15 | 7.5/10/15 |
| X axis travel | mm | 280 | 280 | 325 |
| Z axis trawel | mm | 550/750 | 1000/1500/2000 | 1000/1500/2000 |
| Guide way type | Hard rail | Hard rail | Hard Rail | |
| Capacity of tool post | 4 | 4 | 4 | |
| Tool shank size | mmxmm | 20X20 | 25X25 | 25X25 |
| Tail stock quill dia | φ/mm | 60 | 75 | 75 |
| Tail stock quill travel | mm | 100 | 150 | 150 |
| Tail stock quill taper | MT4# | MT5# | MT5# | |
| Total rated power | KW | 8/10 | 11/12/13 | 11/12/13 |
| Total rated current | A | 17/21 | 23/26/29 | 23/26/29 |
| Net weight | kg | 1900/2200 | 2700/3100/3500 | 2800/3200/3400 |
| Machine dimension(LxWxH) | LxWxH(mm) | 2000/2200x1600x1800 | 2650/3250/3750x1700X1820 | 2650/3250/3750x1700x1820 |
DCK61100E / DCK61125E
| Specifications | Unit | DCK6140 | DCK6150 | DCK6160 |
| Max. swing dia. over bed | mm | 400 | 500 | 600 |
| Max. swing dia. over slide | mm | 240 | 250 | 395 |
| Maximum turning diameter (disc) | mm | 400 | 500 | 600 |
| Max. work piece length | mm | 550/750 | 1000/1500/2000 | 1000/1500/2000 |
| Maximum turning length | mm | 420/620 | 850/1350/1850 | 850/1350/1850 |
| Spindle nose | A2-6/A2-8 | A2-8/A2-11 | A2-8/A2-11 | |
| spindle bore | φ/mm | 48/82 | 82/130 | 82/130 |
| Spindle taper | φ/mm | Chuck / 90 | 90/140 | 90/140 |
| Spindle speed | r/min | 150-2500/150-1800 | 150-1800/150-800 | 150-1800/150-800 |
| Spindle type | Stepless speed regulation | |||
| Spindle motor power | KW | 5.5/7.5 | 7.5/11 | 7.5/11 |
| Chuck type | Manual Chuck | Manual Chuck | Manual Chuck | |
| Chuck size | mm | 200/250 | 250/320/380 | 250/320/380 |
| X axis rapid traverse | m/min | 6 | 6 | 6 |
| Z axis rapid traverse | m/min | 8 | 8 | 8 |
| X axis servo motor torque | N.m | 4 | 5/7.5 | 5/7.5 |
| Z axis servo motor torque | N.m | 6 | 7.5/10/15 | 7.5/10/15 |
| X axis travel | mm | 280 | 280 | 325 |
| Z axis trawel | mm | 550/750 | 1000/1500/2000 | 1000/1500/2000 |
| Guide way type | Hard rail | Hard rail | Hard Rail | |
| Capacity of tool post | 4 | 4 | 4 | |
| Tool shank size | mmxmm | 20X20 | 25X25 | 25X25 |
| Tail stock quill dia | φ/mm | 60 | 75 | 75 |
| Tail stock quill travel | mm | 100 | 150 | 150 |
| Tail stock quill taper | MT4# | MT5# | MT5# | |
| Total rated power | KW | 8/10 | 11/12/13 | 11/12/13 |
| Total rated current | A | 17/21 | 23/26/29 | 23/26/29 |
| Net weight | kg | 1900/2200 | 2700/3100/3500 | 2800/3200/3400 |
| Machine dimension(LxWxH) | LxWxH(mm) | 2000/2200x1600x1800 | 2650/3250/3750x1700X1820 | 2650/3250/3750x1700x1820 |
DH32i / DCK6340 / DCK6340S / DCK6350
| Specifications | Unit | DH32i | DCK6340 | DCK6340S | DCK6350 |
| Max. swing dia. over bed | mm | 320 | 400 | 400 | 520 |
| Max. swing dia. over slide | mm | 70 | 140 | 140 | 220 |
| Max. processing length | mm | 280 | |||
| Max. bar capacity | mm | 39 | 39/44 | 39/44 | 44/54 |
| Max. processing diameter (plate) | mm | 320 | 400 | 400 | 500 |
| Spindle nose | GB59001 | A2-5 | A2-5 | A2-5 | A2-6 |
| Spindle bore | φ/mm | 48 | 48/56 | 48/56 | 66 |
| Spindle speed | r/min | 50-4000 | 50-3500 | 50-3500 | 50-3000 |
| Spindle shift mode | |||||
| Spindle motor power | KW | 3.7 | 5.5 | 5.5 | 7.5 |
| Chuck type | |||||
| Chuck size | Inch | 6 | 6/8 | 6/8 | 10 |
| X axis rapid traverse | m/min | 24 | 24 | 24 | 24 |
| Z axis rapid traverse | m/min | 24 | 24 | 24 | 24 |
| X axis servo motor torque | N.m | 4 | 6 | 6 | 7.5 |
| Z axis servo motor torque | N.m | 4 | 6 | 6 | 7.5 |
| X axis travel | mm | 280 | 400 | 400 | 500 |
| Z axis travel | mm | 330 | 300 | 400 | 500 |
| Guide way type | |||||
| Tool post type | |||||
| Tool shank size | mm | 20×20/025 | 20×20/025 | 20×20/025 | 25×25/032 |
| Total rated power | KW | 6 | 10 | 12 | 13 |
| Total rated current | A | 13 | 21 | 26 | 28 |
| Net weight | kg | 1400 | 2300 | 2600 | 3000 |
| Machine dimension (LxWxH) | (mm) | 1620X1420X1700 | 2200X1530X1780 | 2390 X 1530 X 1780 | 2500 X 1620 X 1890 |
DCK36A / DCK46A / DCK50A
| Specifications | Unit | DCK36A | DCK46A | DCK50A |
| Max. swing dia. over bed | mm | 360 | 460 | 560 |
| Max. swing dia. over slide | mm | 140 | 260 | 300 |
| Max. work piece length | mm | 300 | 350 | 350/500/800/1250 |
| Max. bar capacity | mm | 38/44 | 44 | 55/75 |
| Max. processing diameter (plate) | mm | 360 | 440/360 | 440/360 |
| Spindle nose | GB59001 | A2-5 | A2-5 | A2-6/8 |
| Spindle bore | φ/mm | 48/56 | 56 | 66/66/86 |
| Spindle speed | r/min | 50-4000 | 50-3500 | 0-3000 |
| Spindle shift mode | ||||
| Spindle motor power | KW | 5.5 | 7.5 | 11/11/15 |
| Chuck type | ||||
| Chuck size | Inch | 6 | 8 | 10 |
| X axis rapid traverse | m/min | 24 | 24 | 24 |
| Z axis rapid traverse | m/min | 24 | 24 | 24 |
| X axis servo motor torque | N.m | 6 | 7.5 | 10/15 |
| Z axis servo motor torque | N.m | 6 | 7.5 | 10/15 |
| X axis travel | mm | 185 | 240 | 240 |
| Z axis travel | mm | 350 | 400 | 400/540/860/1300 |
| Guide way type | ||||
| turret type | ||||
| tool shank size | mm | 20X20/025 | 25×25/032 | 25X25/032 |
| Tail stock type | ||||
| Tail stock quill dia. | φ/mm | 65 | 70 | 70/90 |
| Tail stock quill travel | mm | 60 | 80 | 80 |
| Tail stock quill taper | MT4# | MT5# | MT5# | |
| Total rated power | KW | 9 | 11 | 14/18 |
| Total rated current | A | 19 | 23 | 30 |
| Net weight | kg | 2500 | 3000 | 3200/3600/4500/5200 |
| Machine dimension (LxWxH) | (mm) | 2200X1636X1850 | 2500X1950X1950 | 2600/2700/3300/3750X2000X2000 |
