CNC TABLE TYPE PLASMA

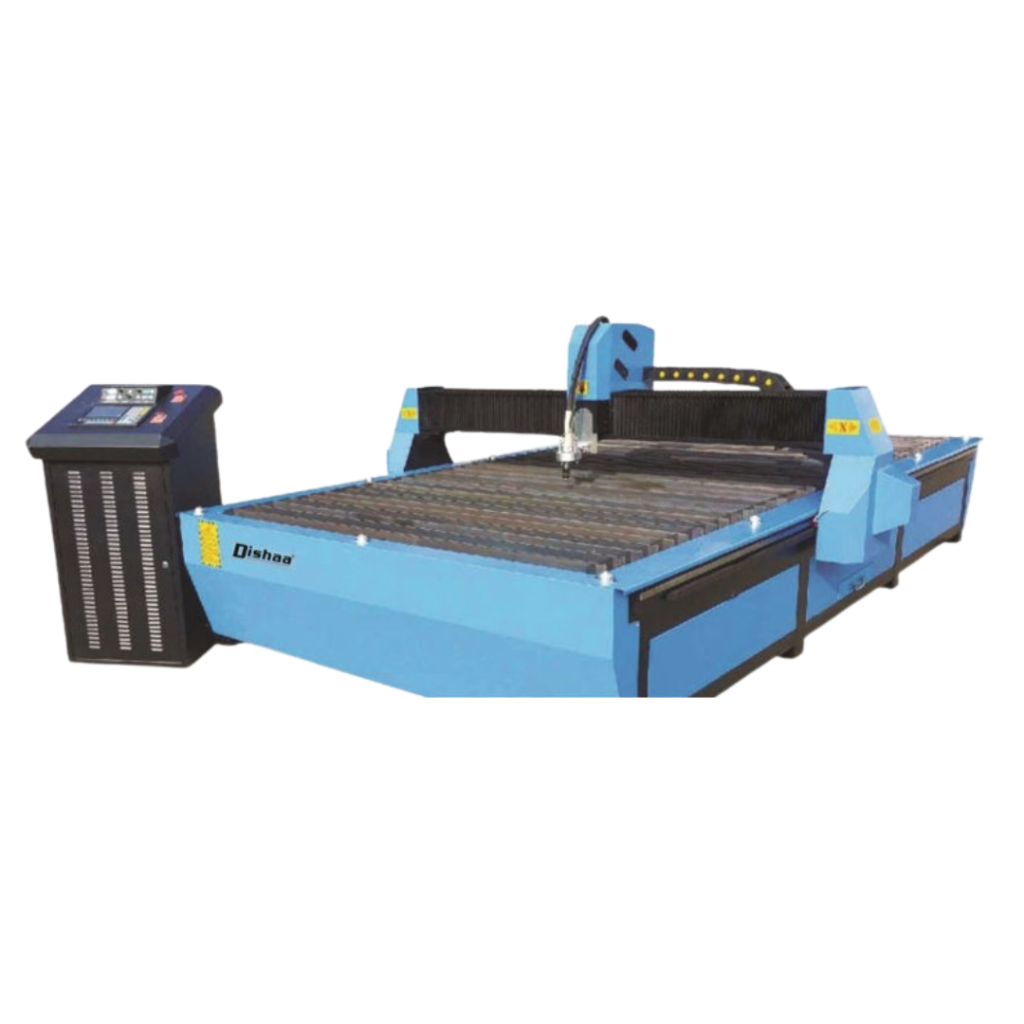

CNC TABLE TYPE PLASMA CUTTING MACHINE

blank

Technical Parameters

Cutting Machine Specifications
Model DMTC-1530
Effective cutting area 1500* 3000mm (4.9*9.8 ft)
Cutting mode Plasma oxy-fuel(Option)
Plasma cutting thickness Depends on plasma source
Oxy-fuel cutting thickness 5mm—50mm (1/5—2 inch)
Drive system Dual drive, stepper motors/servo motors
CNC system Fangling CNC controller
Torch height control Arc voltage auto THC and anti-collision for plasma cutting
Running speed regulation range 0—12000 mm/min
Workable option Water workable
