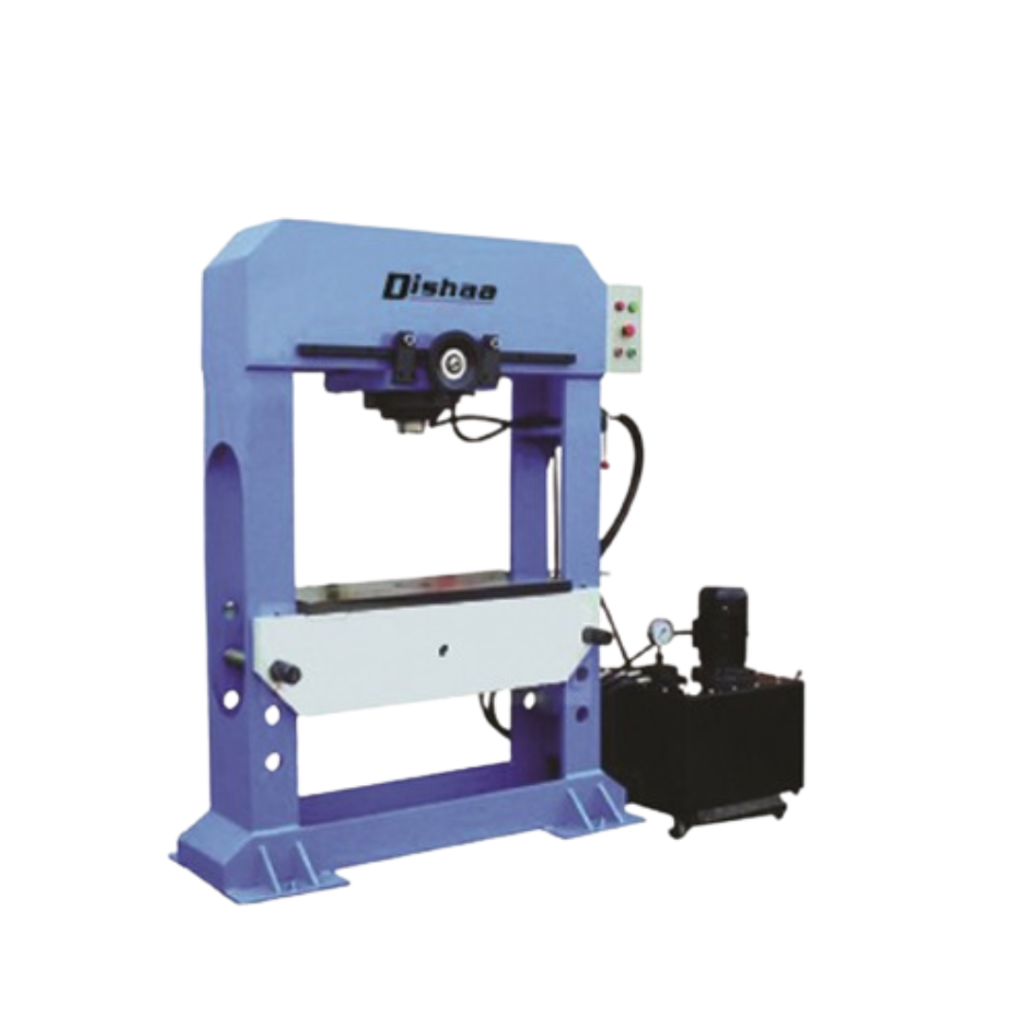

HYDRAULIC PRESS MACHINE

Features:

HP series hydraulic press are used for assembling, dismantling alignment, calendaring, tension, bending and punching.
The machine supplied oil by Italy CNK and CBZ pump. It could save 60% energy compared with the traditional model. The efficiency increased to 2-3 times. It takes the advantages of small volume, high pressure, simple structure and light weight

The machine is suitable for operating in the open air or the other special situation.

H Frame Press Technical Specifications

	MODEL	CAPACITY KN	PRESSURE MPA	TRAVEL MM	TABLE SIZE MM	DIMENSION MM	WEIGHT KG
Manual H frame Press	DHP-10S	100	50	160+370	197x455	670x520x1210	55
	DHP-20S	200	50	200+450	200x300	500x350x1300	260
	DHP-30S	300	50	200+450	300x400	550x400x1500	320
	DHP-50S	500	60	250+450	360x680	1000x600x1750	460
	DHP-63S	630	30	220+405	400x500	1500x650x1950	1020
	DHP-100S	1000	45	260+450	400x600	1600x720x2000	720/820
	DHP-150S	1500	40	260+450	800x400	1730x720x2150	1100
H Frame Hydraulic Press	DHP-20	200	25	200+270	200*300	11605501600	400
	DHP-30	300	25	200+270	300x400	1160x550x1600	420
	DHP-50	500	25	220+405	360x480	1500x650x1950	980
	DHP-63	630	30	220+405	400x500	1500x650x1950	1020
	DHP-100	1000	31.5	250+405	700x460	1730x730x2250	1220
	DHP-150	1500	30	250+405	440x980	1730x730x2250 630x730x960	1350
H Frame Press with Moving Cylinder	DHP-200	2000	31.5	300+405	980x500	1940x950x2350 900x800x1060	2200
	DHP-20M	200	25	220+405	400x500	1300x650x1750	980
	DHP-30M	300	25	220+405	400x500	1500x650x1950	980
	DHP-50M	500	25	220+405	400x500	1500x650x1950	980
	DHP-63M	630	25	220+405	400x500	1500x650x1950	1020
	DHP-100M	1000	30	250+405	440x980	1730x730x2250 730x630x960	1220
	DHP-150M	1500	30	250+405	440x980	1730x730x2250	1350
	DHP-200M	2000	31.5	300+405	500x1000	1940x950x2350 900x800x106	2200
	DHP-300M	3000	300+405		700x1200	2100x950x2700 1100x1200x1350	4200
