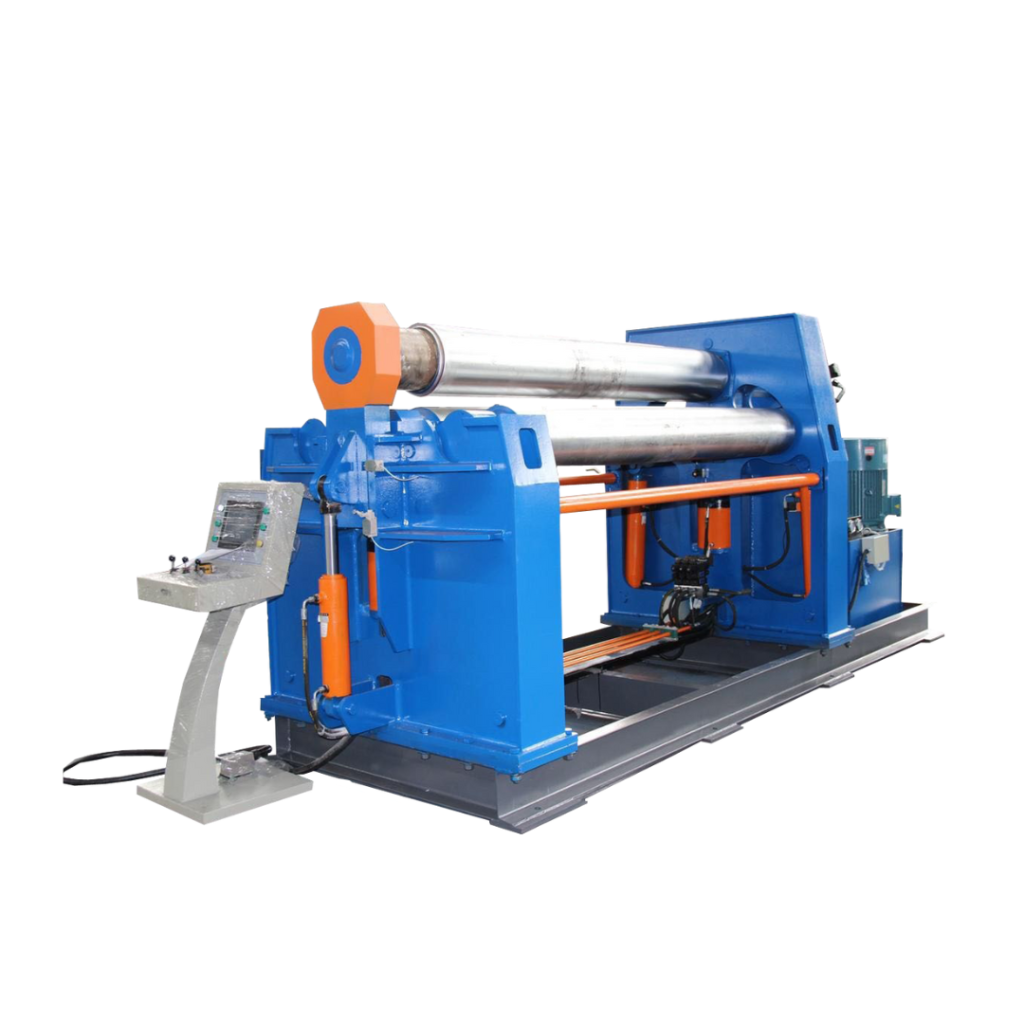

HYDRAULIC ROLLING MACHINE
Advantages:
1.Hydraulic-driven, high efficiency(driving power equivalent 60% traditional;
2.Permanent lubrication technology(bearing life period without refueling);
3.Clamping pressure is adjustable (non-existent skidding, productivity is 50-80% than three roller plate rolling clamping);
4. Rolling diameter can catch 1.1 times of the top roller;
5.It can meet many kinds of demands
Following users apply to use the machine:
1.Operators to lack of experience and require high efficiency;
2. Require high accuracy to improve products quality;
3.Only need one operator to reduce labor costs;
4. Require conveying device, feeding device and support device because of large size plate or high productivity or security;
5. Require CNC operation to reduce errors caused by human factors.
Technical Parameters:
| Specification | Max. thickness of coiled plate (mm) | Max. width of coiled plate (mm) | Max. thickness preflex (mm) | Yield limit (Mpa) | Diameter of upper roller (mm) | Main motor power (KW) |
|---|---|---|---|---|---|---|
| DW11XNC-35X3000 | 35 | 3000 | 30 | 245 | 520 | 45 |
| DW11XNC-40X2500 | 40 | 2500 | 35 | 245 | 510 | 45 |
| DW11XNC-40X3000 | 40 | 3000 | 35 | 245 | 550 | 55 |
| DW11XNC-40X4000 | 40 | 4000 | 32 | 245 | 630 | 55 |
| DW11XNC-55X3000 | 55 | 3000 | 45 | 245 | 630 | 75 |
| DW11XNC-65X4000 | 65 | 4000 | 60 | 245 | 840 | 90 |
| DW11XNC-75X3000 | 75 | 3000 | 65 | 245 | 750 | 90 |
| DW11XNC-90X3000 | 90 | 3000 | 75 | 245 | 820 | 110 |
| DW11XNC-100X3000 | 100 | 3000 | 90 | 245 | 880 | 110 |
| DW11XNC-120X3000 | 120 | 3000 | 100 | 245 | 920 | 132 |
| DW11XNC-160X4000 | 160 | 4000 | 130 | 245 | 1280 | 220 |
