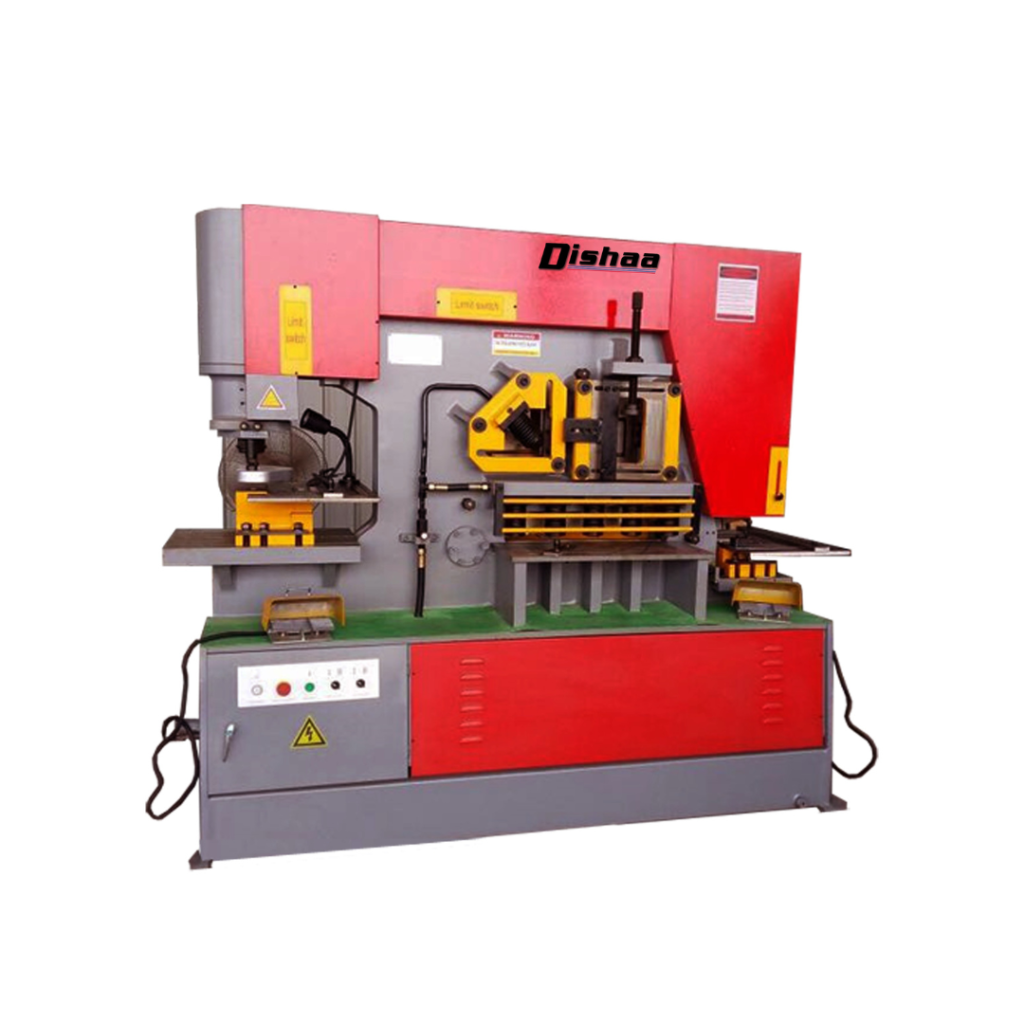

IRON WORKER
Features:
Hydraulic transmission, is the lastest product of the multi-function joint punching and shearing machine, shearing, punching, die cut flat steel, square steel, round steel, angle steel, channel steel, I-beam carried, and equipped with shear blockfeeding devices.
Technical Parameters:
| MODEL | DMIW-16 | DMIW-20 | DMIW-25 | DMIW-30 | DMIW-40 |
|---|---|---|---|---|---|
| Punching Pressure (T) | 60T | 90T | 120T | 160T | 200T |
| Max.cutting thickness of sheet plates (mm) | 16 | 20 | 25 | 30 | 40 |
| Material strength (N/mm) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Angle of shear (°) | 7° | 8° | 8° | 8° | 8° |
| Flat bar shearing (T×W) | 16×250 8×400 | 20×330 10×480 | 25×330 16×600 | 30×335 20×600 | 40×335 30×600 |
| Max.length of cylinder stroke (mm) | 80 | 80 | 80 | 80 | 100 |
| Trips frequency (times/min) | 11-20 | 12-20 | 8-18 | 6-16 | 6-16 |
| Depth of throat (mm) | 300 | 355 | 400 | 600 | 530 |
| Punch depth (mm) | 16 | 20 | 25 | 28 | 35 |
| Max.punching diameter (mm) | 25 | 30 | 35 | 38 | 40 |
| Motor Power (KW) | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Overall dimensions (L×W×H) (approx.) | 1740×810×1830 | 1950×900×1950 | 2355×960×2090 | 2800×1050×2450 | 2900×1100×2500 |
