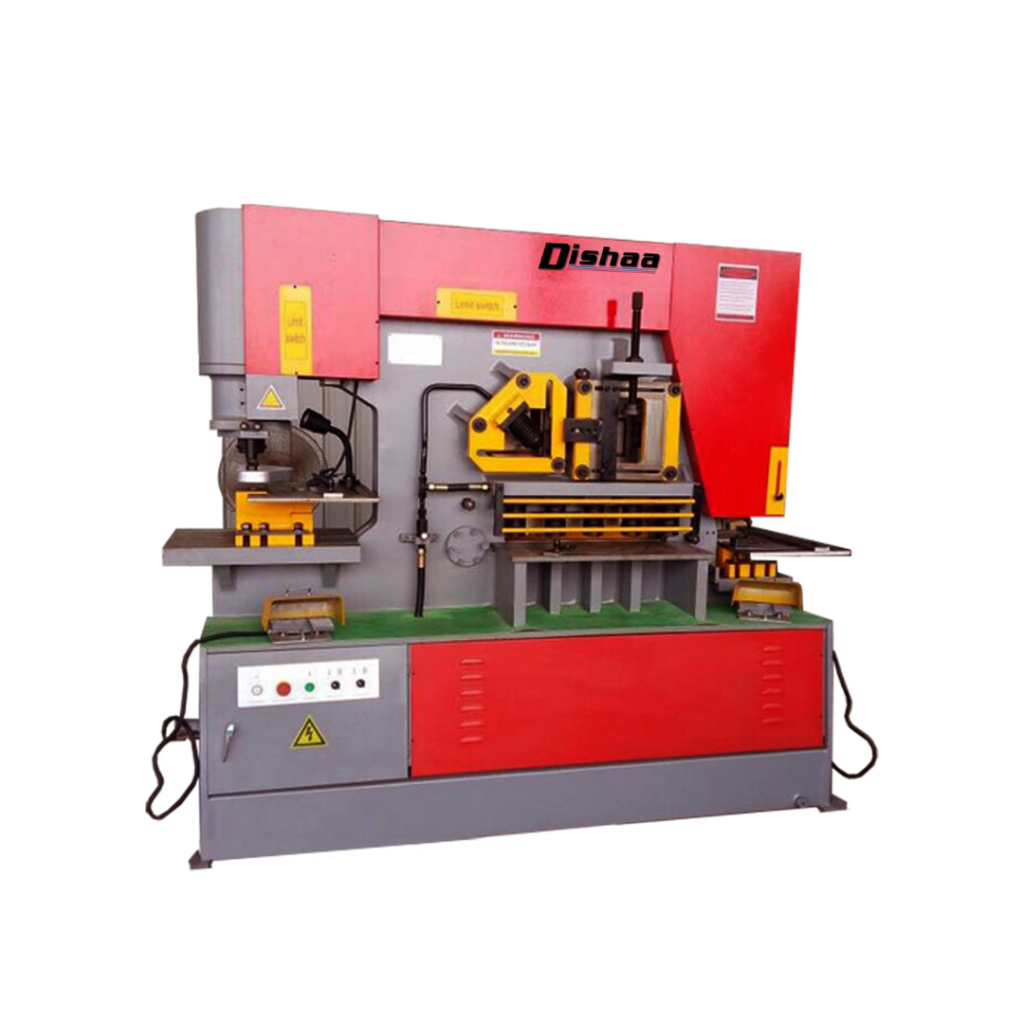

IRON WORKER
Introduction:
Iron Worker Machines are versatile, multi-purpose machines used in metal fabrication workshops for shearing, punching, notching, and bending a variety of metal materials. These robust machines are considered essential in industries where precision and heavy-duty operations are critical. Known for their reliability, speed, and ability to handle multiple tasks, iron workers reduce the need for multiple machines, thereby saving space and cost.
In today’s industrial and engineering environments, efficiency and time management are key to productivity. Iron worker machines answer this need perfectly. With their hydraulic power system and interchangeable tools, they offer clean cuts and accurate holes, even in high-tensile steel. Whether you’re in structural steel fabrication, shipbuilding, manufacturing, or construction, an iron worker can significantly streamline your workflow.
Iron Worker Machines are available in different capacities and models, including single- and dual-cylinder designs, with varying force outputs suitable for light to heavy metal operations. Many models come equipped with interchangeable tooling, which allows businesses to adapt the machine for specific tasks and materials. Whether you’re cutting thick steel plates, punching holes in angle bars, or bending flat metal sheets, the Iron Worker delivers clean, accurate results every time.
What sets this machine apart is not just its multi-functionality, but also its rugged build, user-friendly operation, and long service life. Manufacturers and engineers across sectors such as construction, shipbuilding, aerospace, automotive, and defense prefer Iron Worker Machines because they increase output while reducing labor intensity.
In regions like the UAE, where the demand for fast-paced, precision-based industrial production is constantly rising, Iron Worker Machines are a preferred choice for small, medium, and large-scale fabrication units. At Dishaa Machinery & Tools, we supply CE-certified, high-performance Iron Worker Machines with 2-year warranty and lifetime support, trusted by leading industries across the Gulf.
Features:
1. Hydraulic transmission, is the lastest product of the multi-function joint punching and shearing machine, shearing, punching, die cut flat steel, square steel, round steel, angle steel, channel steel, I-beam carried, and equipped with shear blockfeeding devices.
2. Hydraulic Power System:
Ensures smooth, consistent, and powerful operations with minimal manual intervention.
3. Precision Engineering:
Equipped with precise gauges and guides for accurate cutting and punching.
4. Durable Construction:
Built with high-grade steel and heavy-duty components for long-term use.
5. Tool Change System:
Quick and easy tool changes to minimize downtime and improve productivity.
6. Safety Features:
Emergency stops, safety guards, and foot pedal controls are integrated to ensure operator safety.
7. Compact Design:
Space-saving structure, suitable even for small workshops.
8. Energy Efficient:
Low power consumption compared to running multiple machines for separate tasks.
Applications:
1. Steel Fabrication Workshops
Used to create beams, columns, and trusses by punching and cutting steel sections with precision.
2. Construction Industry
Ideal for on-site fabrication of metal components for buildings and infrastructure.
3. Automobile Industry
Supports fabrication of vehicle parts and custom metal frames.
4. Agricultural Equipment Manufacturing
Used in forming structural frames and parts for farm machinery.
5. Aerospace and Railways
High-precision notching and shearing of specialized alloys used in aircraft and train manufacturing.
6. Maintenance Departments
Versatile enough for general repair and maintenance work involving metal structures.
7. Improves Worker Safety
Built-in safety features and ergonomic controls protect users during operation.
8. Versatile Across Materials
Handles different types of metals such as mild steel, stainless steel, copper, aluminum, and brass.
9. Consistent Performance
Delivers uniform results across various operations with minimal operator fatigue.
10. Customizable Tooling
Many machines offer tooling options to meet specific job requirements.
Benifits:
1.Time-Saving
Perform multiple operations simultaneously or quickly switch between them, reducing overall job time.
2. Cost-Efficient
Eliminates the need to purchase multiple machines for shearing, punching, and bending.
3. Precision Output
Offers high accuracy, reducing wastage of expensive materials.
4. Boosts Productivity
Ideal for mass production as well as custom one-off jobs, increasing shop output.
5. Space-Saving Solution
One compact machine performs several tasks, perfect for workshops with limited space.
6. Low Maintenance
Requires minimal servicing, and parts are widely available, reducing long-term maintenance costs.
7. Improves Worker Safety
Built-in safety features and ergonomic controls protect users during operation.
8. Versatile Across Materials
Handles different types of metals such as mild steel, stainless steel, copper, aluminum, and brass.
9. Consistent Performance
Delivers uniform results across various operations with minimal operator fatigue.
10. Customizable Tooling
Many machines offer tooling options to meet specific job requirements.
Conclusion
Iron Worker Machines are a game-changing addition to any fabrication workshop or manufacturing facility. Their ability to execute multiple metalworking tasks with speed and accuracy makes them a top choice for industrial operations. With the rising demand for precision and efficiency, investing in an iron worker machine is a step toward optimized production.
Dishaa Machinery & Tools offers high-performance, CE-certified Iron Worker Machines in the UAE with 2-year warranty and lifetime technical support. Whether you’re a startup factory or an established engineering firm, we have the right solution for your metalworking needs.
Technical Parameters:
| MODEL | DMIW-16 | DMIW-20 | DMIW-25 | DMIW-30 | DMIW-40 |
|---|---|---|---|---|---|
| Punching Pressure (T) | 60T | 90T | 120T | 160T | 200T |
| Max.cutting thickness of sheet plates (mm) | 16 | 20 | 25 | 30 | 40 |
| Material strength (N/mm) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Angle of shear (°) | 7° | 8° | 8° | 8° | 8° |
| Flat bar shearing (T×W) | 16×250 8×400 | 20×330 10×480 | 25×330 16×600 | 30×335 20×600 | 40×335 30×600 |
| Max.length of cylinder stroke (mm) | 80 | 80 | 80 | 80 | 100 |
| Trips frequency (times/min) | 11-20 | 12-20 | 8-18 | 6-16 | 6-16 |
| Depth of throat (mm) | 300 | 355 | 400 | 600 | 530 |
| Punch depth (mm) | 16 | 20 | 25 | 28 | 35 |
| Max.punching diameter (mm) | 25 | 30 | 35 | 38 | 40 |
| Motor Power (KW) | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Overall dimensions (L×W×H) (approx.) | 1740×810×1830 | 1950×900×1950 | 2355×960×2090 | 2800×1050×2450 | 2900×1100×2500 |
