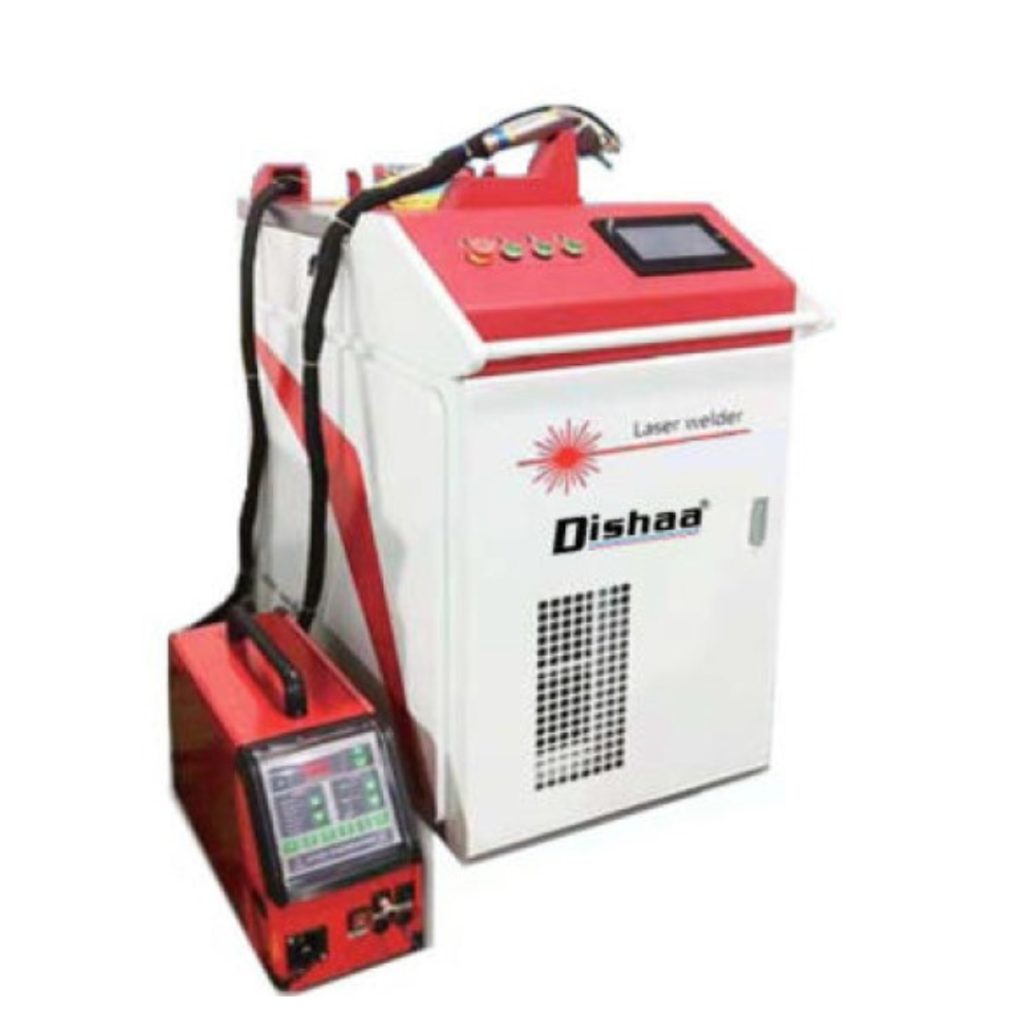

LASER WELDING MACHINE
Application Fields:
- It is widely used for welding all kinds of stainless steel mirror words, stainless steel brushed words, stainless steel spherical characters, stainless steel paint characters stainless steel spray words, stainless steel solid words, stainless steel plating word stainless steel gold foil words, precision stainless steel characters, titanium flat words, titanium spherical surface word, Seiko Titanium, Flat Copper, Spherical Copper, Copper, Copper Antique, Selko Aluminum, Iron Paint (Stainless Steel, Iron, Low Carbon Steel), metal word welding.
- Lighting and mould industry, optoelectronic communication devices, medical treatment, electronics, copper, aluminum and small welding processing industries.
Adventages:
1. It is easy to operate, you can get on the job without special job permit, and you can weld beautiful products without skill of the master.
2. The welding speed is 2-10 times faster than the traditional welding. One machine can save at least 2 welders a year.
3. The weld seam is smooth, reducing the subsequent grinding process, saving time and cost.
4. Welding large metal advertising characters use hand-held welding heads to overcome the limitations of the work space.
5. The fixed welding head can rotate in all direction to overcome the inconvenience of the traditional welding head in one direction.
6. Suitable for all kinds of complex welds, spot welding of various devices.
Technical Parameters:
| Model | DW-1000/1500/2000 |
|---|---|
| Laser wavelength | 1064nm |
| Output optical power | 1000W / 1500W / 2000W |
| Large pulse energy | 100J |
| High peak power | 9.9kw |
| Pulse width | 0-15ms |
| Repetition frequency | 0-150HZ |
| Spectroscopic methods | Precision energy splitting or high speed time splitting |
| Closed loop feedback control | Arbitrary waveform real-time control power negative feedback |
| Energy fluctuation | <±3% |
| Aiming mode | Laser diode red light indication (CCD option) |
| Number of optical fiber paths | (standard one light path) |
| Cooling way | Built- in water chiller |
| Power consumption of equipment | 4KW |
| Power requirements | AC 220V±15% 50/60HZ |
| Size of the host | 1360x660x1060mm (length, width and height) |
