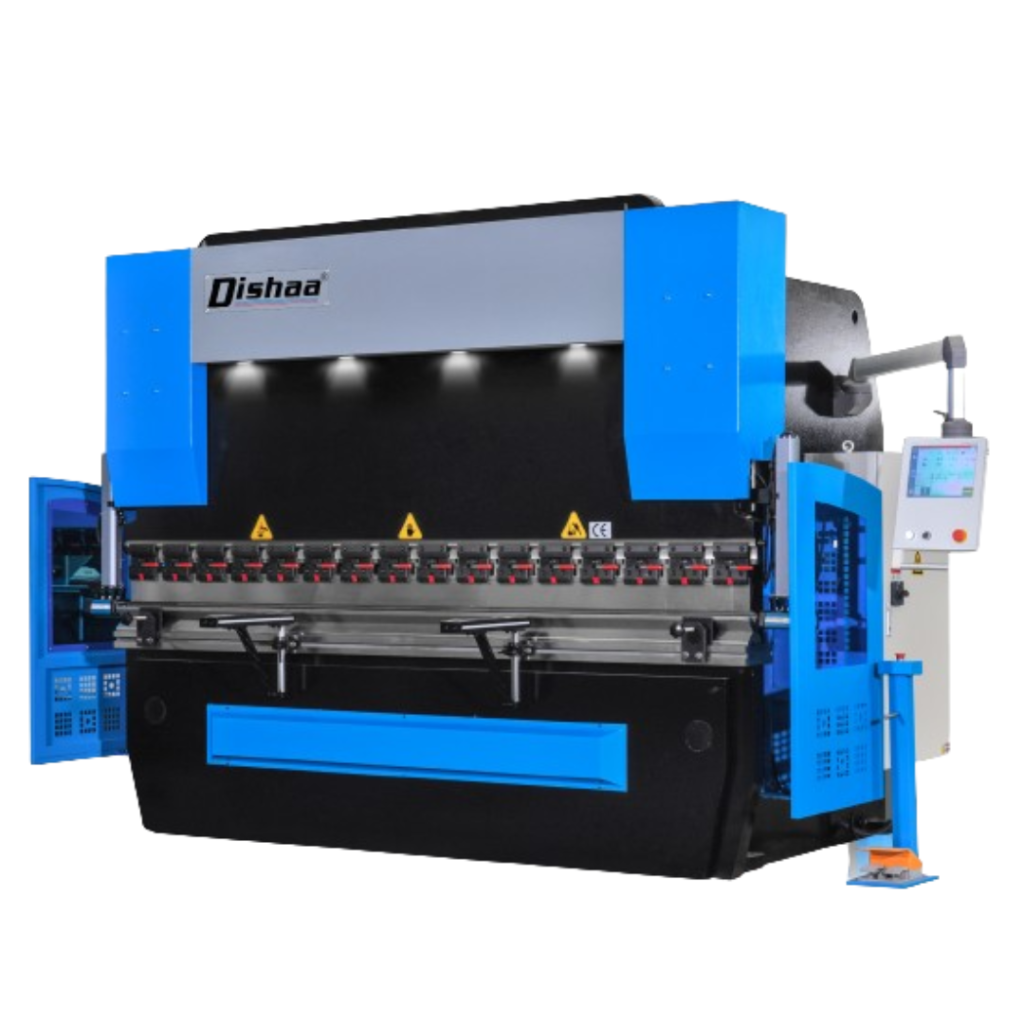

NC HYDRAULIC PRESS BRAKE
Performance
- The bending machine frame is integrally processed by a large floor boring and milling machine.
- The forged material shaft body has good rigidity and elasticity, and has a fine adjustment device, whichis weak against the partial load.
- The user can customize the mold segments 10, 15, 20, 30, 50, 100, 300 (cm).
- Use ESTUN or DELEM brand CNC system for users to choose.
- In the system, the plate thickness and length parameters are input, and the system will automatically perform deflection compensation.
- It adopts ball screw and linear guide, which is driven by servo motor, and the back gauge is positioned quickly and accurately.
- The height of the finger is designed from the overall adjustment, and the height of the finger can be adjusted manually.
- Improve the replacement mold speed and improve work efficiency.
| Type | Nominal Force (kN) |
Worktable Length (mm) |
Poles Distance (mm) |
Throat Depth (mm) |
Slider Travel (mm) |
Max Open (mm) |
Power (kW) |
Weight (kg) |
Dimension L×W×H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 40T/2200 | 400 | 2200 | 1850 | 220 | 100 | 320 | 5.5 | 2750 | 2200×1200×1910 |
| 40T/2500 | 400 | 2500 | 1850 | 220 | 100 | 320 | 5.5 | 3000 | 2500×1200×1910 |
| 50T/2200 | 500 | 2200 | 1850 | 220 | 100 | 320 | 5.5 | 2950 | 2200×1200×1910 |
| 50T/2500 | 500 | 2500 | 1850 | 220 | 100 | 320 | 5.5 | 3400 | 2500×1200×1910 |
| 63T/2500 | 630 | 2500 | 1900 | 260 | 120 | 320 | 5.5 | 4000 | 2500×1300×2210 |
| 63T/3200 | 630 | 3200 | 2660 | 260 | 120 | 320 | 5.5 | 4900 | 3200×1300×2210 |
| 80T/2500 | 800 | 2500 | 1980 | 320 | 120 | 350 | 7.5 | 5700 | 2500×1400×2320 |
| 80T/3200 | 800 | 3200 | 2550 | 320 | 120 | 350 | 7.5 | 6700 | 3200×1500×2420 |
| 100T/2500 | 1000 | 2500 | 1980 | 320 | 150 | 400 | 7.5 | 6800 | 2500×1500×2440 |
| 100T/3200 | 1000 | 3200 | 2550 | 320 | 150 | 400 | 7.5 | 8400 | 3200×1600×2440 |
| 100T/4000 | 1000 | 4000 | 3350 | 320 | 150 | 400 | 7.5 | 6800 | 4000×1600×2440 |
| 125T/2500 | 1250 | 2500 | 1980 | 320 | 150 | 460 | 11 | 7200 | 2500×1600×2470 |
| 125T/3200 | 1250 | 3200 | 2650 | 320 | 150 | 460 | 11 | 8800 | 3200×1650×2470 |
| 160T/3200 | 1600 | 3200 | 2550 | 320 | 200 | 460 | 11 | 10500 | 3200×1700×2470 |
| 160T/4000 | 1600 | 4000 | 3350 | 320 | 200 | 460 | 11 | 11500 | 4000×1700×2470 |
| 160T/5000 | 1600 | 5000 | 4090 | 320 | 200 | 460 | 11 | 14900 | 5000×1900×2630 |
| 200T/3200 | 2000 | 3200 | 2550 | 320 | 200 | 460 | 11 | 11500 | 3200×1800×2650 |
| 200T/4000 | 2000 | 4000 | 3350 | 320 | 200 | 460 | 11 | 13500 | 4000×1850×2650 |
| 200T/5000 | 2000 | 5000 | 4090 | 320 | 200 | 460 | 11 | 19000 | 5000×1900×2650 |
| 250T/3200 | 2500 | 3200 | 2550 | 400 | 250 | 530 | 18.5 | 14500 | 3200×2000×2750 |
| 250T/4000 | 2500 | 4000 | 3350 | 400 | 250 | 530 | 18.5 | 19300 | 4000×2000×2750 |
| 250T/5000 | 2500 | 5000 | 4090 | 400 | 250 | 530 | 18.5 | 20300 | 5000×2000×2750 |
| 250T/6000 | 2500 | 6000 | 4900 | 400 | 250 | 530 | 18.5 | 27500 | 6000×2000×2750 |
| 300T/4000 | 3000 | 4000 | 3350 | 400 | 250 | 530 | 22 | 22500 | 4000×2300×4450 |
| 300T/5000 | 3000 | 5000 | 4090 | 400 | 250 | 530 | 22 | 24900 | 5000×2300×4450 |
| 300T/6000 | 3000 | 6000 | 4900 | 400 | 250 | 530 | 22 | 29500 | 6000×2300×4450 |
| 400T/4000 | 4000 | 4000 | 3350 | 400 | 250 | 530 | 30 | 28500 | 4000×2450×4700 |
| 400T/5000 | 4000 | 5000 | 4090 | 400 | 250 | 530 | 30 | 32000 | 5000×2450×4700 |
| 400T/6000 | 4000 | 6000 | 4900 | 400 | 250 | 530 | 30 | 35000 | 6000×2450×4700 |
| 500T/6000 | 5000 | 6000 | 4900 | 400 | 320 | 590 | 37 | 49000 | 6000×2800×4900 |
| 500T/8000 | 5000 | 8000 | 6200 | 400 | 320 | 590 | 37 | 54000 | 8000×3200×4900 |
| 600T/8000 | 6000 | 6000 | 4900 | 400 | 320 | 590 | 45 | 60000 | 6050×4500×4700 |
