Pneumatic Press

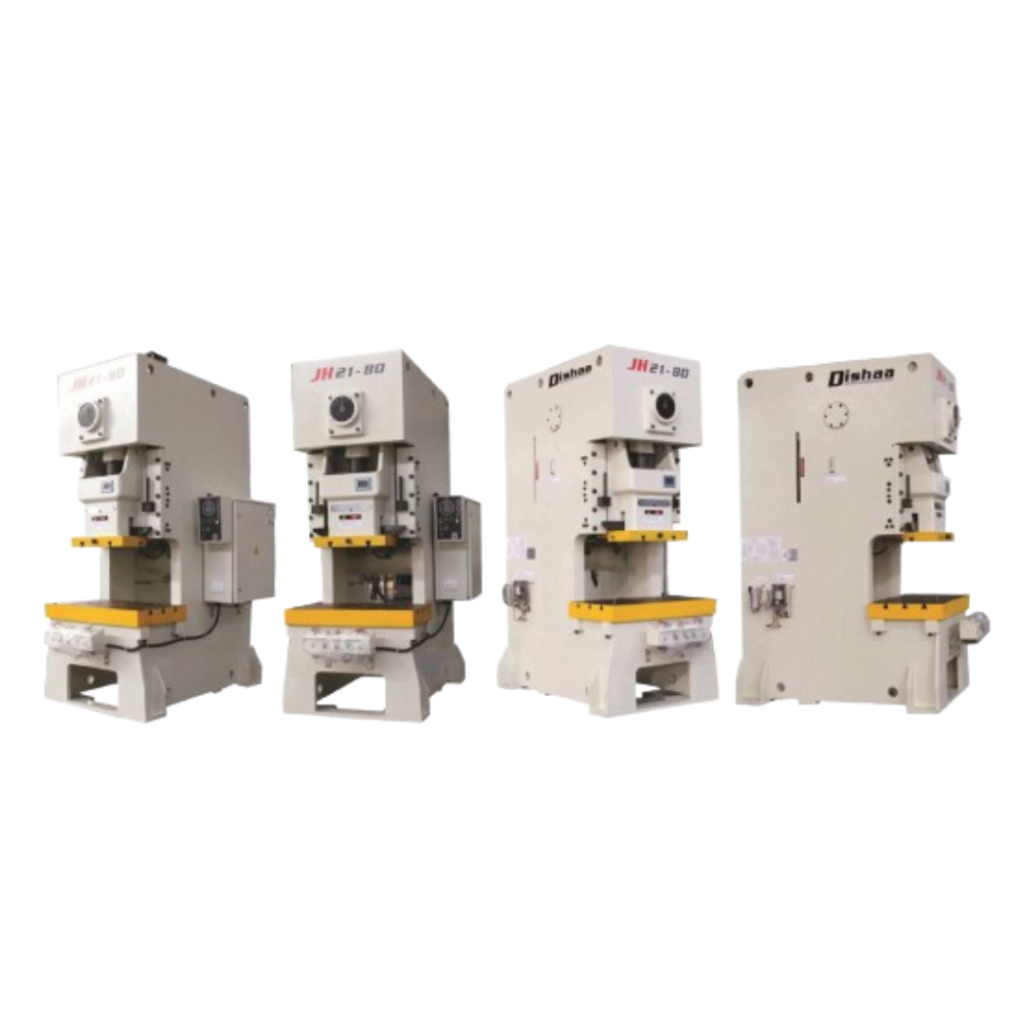

JH21 Series Punch Press
JH21-25 / JH21-45 / JH21-63 / JH21-80
Features
- Steel plate welded body, stiffness, more stable.
- Dry pneumatic friction clutch- brake, friction machine for semi-metallic materials.
- The imported safe double valve control, quick safe and reliable.
- Mold height realize electric adjustment, digital display control height.
- Slider use rectangle hexahedron extended guide, bronze lining board, high guidance accuracy.
- International famous brand special press control system.
- Automatic feeding device and all kinds of automation equipment.
Application
- Suitable for blanking, punching, forming, bending, stretching and other cold stamping process to achieve.
- Widely used in electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial areas.

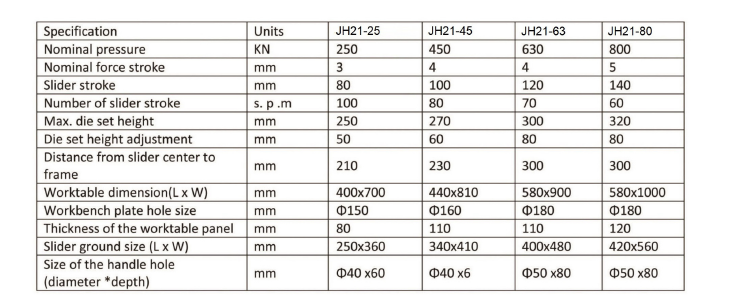

Specification | Units | JH21-25 | JH21-45 | JH21-63 | JH21-80 |
Nominal pressure | KN | 250 | 450 | 630 | 800 |
Nominal force stroke | mm | 3 | 4 | 4 | 5 |
Slider stroke | mm | 80 | 100 | 120 | 140 |
Number of slider stroke | s.p.m | 100 | 80 | 70 | 60 |
Max. die set height | mm | 250 | 270 | 300 | 320 |
Die set height adjustment | mm | 50 | 60 | 80 | 80 |
Distance from slider center to frame | mm | 210 | 230 | 300 | 300 |
Worktable dimension(L) W) | mm | 400×700 | 440×810 | 580×900 | 580×1000 |
Workbench plate hole size | mm | ϕ150 | ϕ160 | ϕ180 | ϕ180 |
Thickness of the worktable panel | mm | 80 | 110 | 110 | 120 |
Slider ground size (L W) | mm | 250×360 | 340×410 | 400×480 | 420×560 |
Size of the handle hole (diameter *depth) | mm | ϕ40×60 | ϕ40×6 | ϕ50×80 | ϕ50×80 |
