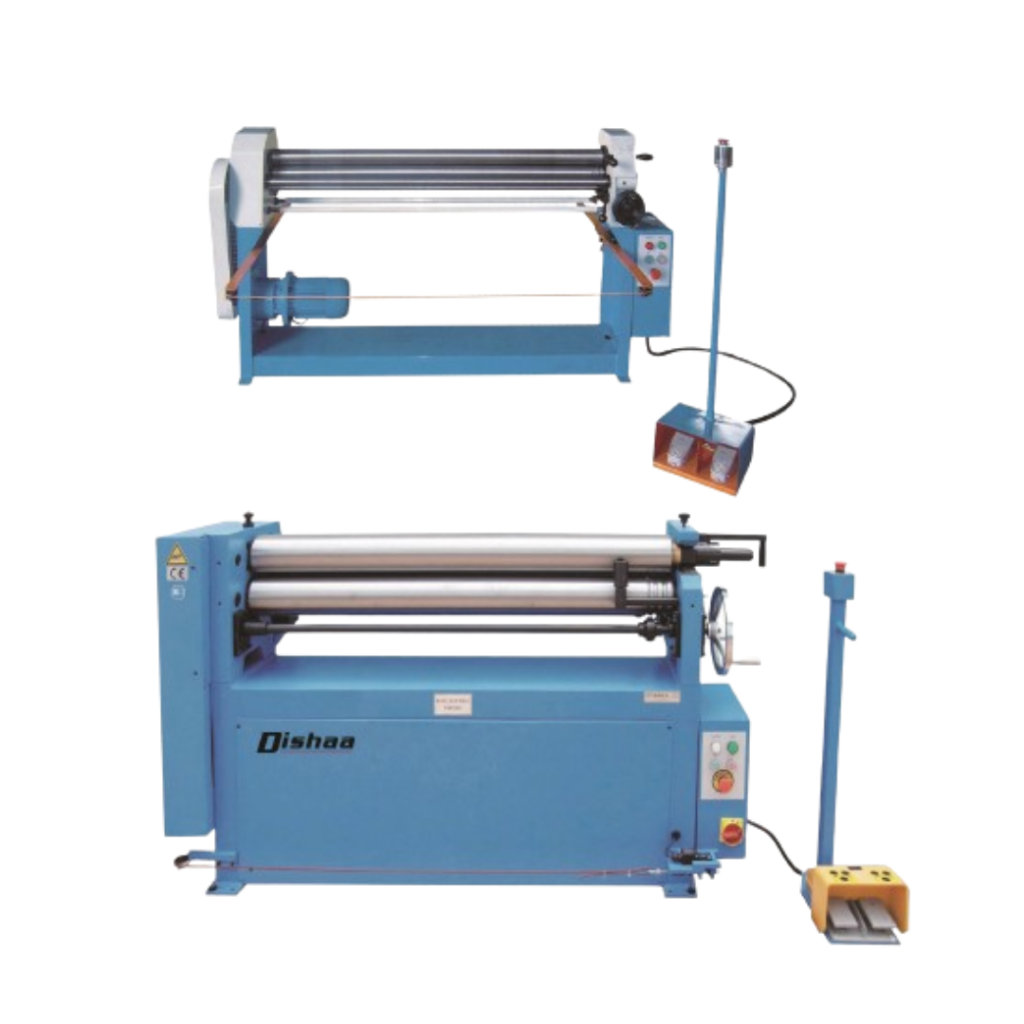

SLIP ROLL MACHINE
Features:
Asymmetrical roll bending machine with 3 high strength steel rolls
Fixed top roller, adjustable lower and rear rollers
▸ Standard series wire core groove
Top roll swing out across cam lock
▸ Supplied with conical bending feature
Technical Parameters:
| Model | Max. rolling thickness (mm) | Max. rolling width (mm) | Dia. of roller (mm) | Motor power (kW) | Dimension (cm) | N.W./G.W. (kg) |
|---|---|---|---|---|---|---|
| DMER-1300x1.5 | 1.5 | 1300 | 75 | 0.75 | 180x65x110 | 280/340 |
| DMER-1300x2.5 | 2.5 | 1300 | 90 | 1.5 | 200x72x120 | 540/600 |
| DMER-1300x4.5 | 4.5 | 1300 | 120 | 2.2 | 200x76x127 | 750/830 |
| DMER-1550x3.5 | 3.5 | 1550 | 120 | 2.2 | 222x76x127 | 790/890 |
| DMER-2020x3.0 | 3.0 | 2020 | 127 | 4.0 | 270x87x130 | 1100/1200 |
