Features:
- They have the function of air spring which can be installed inside the arm (optional)

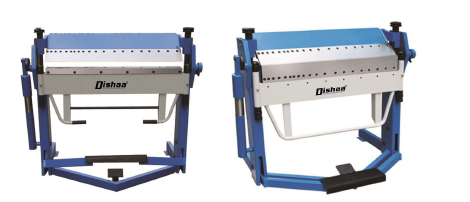

- Our precision folding machine is used for bending the sheet metal parts. The upper blade can be dismantled for use. It can choose a combination of upper blades according to the abnormity degree and length of the workpiece.
Technical Parameters:
| Model | DPB1020/2.5 | DPB1270/2 | DPB1520/1.5 | DPB2020/1.2 | DPB2520/1.0 |
|---|---|---|---|---|---|
| Max. working length(mm) | 1020 | 1270 | 1520 | 2020 | 2520 |
| Max. sheet thickness(mm) | 2.5 | 2.0 | 1.5 | 1.2 | 1.0 |
| Max. clamping bar lift(mm) | 47 | 47 | 47 | 47 | 47 |
| Folding angle | 0-135° | 0-135° | 0-135° | 0-135° | 0-135° |
| Packing size (cm) | 146X62X127 | 170X71X127 | 196X71X130 | 247X94X132 | 297X94X132 |
| N.W.G.W.(kg) | 285/320 | 320/360 | 385/456 | 490/640 | 590/770 |
Features:
- A fully developed quick release system for the clamp beam segment ensures fast interchangeability
- The folding beams are fitted with a counter-balance and angle stop to provide a perfect and effective operation within the full capacity of the machine
- The optional back-gauge can be easily mounted when using the pre-drilled fixing point
Technical Parameters:
| Model | DPB1020/2A | DPB1270/2A | DPB1520/1.5A | DPB1020/3SH | DPB1270/3SH |
|---|---|---|---|---|---|
| Max. working length (mm) | 1020 | 1270 | 1520 | 1020 | 1270 |
| Max. sheet thickness (mm) | 2.0 | 2.0 | 1.5 | 2.0 | 1.5 |
| Max. clamping bar lift (mm) | 47 | 47 | 47 | 45 | 45 |
| Folding angle | 135° | 135° | 135° | 150° | 150° |
| Packing size (cm) | 146x62x127 | 170x71x127 | 196x71x130 | 142x59x142 | 167x66x142 |
| N.W.G.W.(kg) | 320/350 | 350/385 | 395/466 | 430/470 | 465/510 |
